QLB-Y Series Mobile Type Asphalt Mixing Plant

  • mobile asphalt plant

    mobile asphalt plant

    Model: QLB-Y1000

    Rated capacity: 80t/h

    Vibrating screen: 4

    Rated mixing capacity: 1000kg

    Fuel Type: diesel,mazut/heavy oil, gas/LPG,coal powder

    Get a Quote
  • mobile asphalt plant

    mobile asphalt plant

    Model: QLB-Y1500

    Rated capacity: 120t/h

    Vibrating screen: 4

    Rated mixing capacity: 1500kg

    Fuel Type: diesel,mazut/heavy oil, gas/LPG,coal powder

    Get a Quote
  • mobile asphalt plant

    mobile asphalt plant

    Model: QLB-Y2000

    Rated capacity: 160t/h

    Vibrating screen: 4

    Rated mixing capacity: 2000kg

    Fuel Type: diesel,mazut/heavy oil, gas/LPG,coal powder

    Get a Quote

PARAMETER

NameSpecification
Model QLB-mobileQLB-Y500QLB-Y1000QLB-Y1500QLB-Y2000
Rated productivity30-40t/h60-80t/h90-120t/h120-160t/h
Volume/number of cold bin8m3/38m3/410m3/410m3/4
Dust collect typeAir back flush/wet dust collect
Dust collect resultNo more than 30mg/Nm3  Ringe-Imann grade 1
FuelDiesel/heavy oil
Volume/number of hot bin15t/420t/425t/425t/4
Volume/number of powder bin20m330m3
Precision of aggregate meteringLess than ±1.5%Less than ±1.0%
Precision of powder meteringLess than ±1.5%Less than ±1.0%
Precision of asphalt meteringLess than ±0.5%
Mixer ability KG/batch600100015002000
Volume/number of asphalt tank20m3/220m3/230m3/230 m3/2
Conduction oil boilerYYW-180YYYW-350YYYW-350YYYW-600Y
Number of mobile unit4577
Total power(KW)160200310356
Control systemFull auto computer control(PLC+LED+mouse)


MAIN STRUCTURE AND FEATURES OF THE EQUIPMENT

Features for mobile asphalt mixing equipment

Xitong brand Y series mobile asphalt mixing plant is a new product developed by our company using modern technology, combining the advantages of various models at home and abroad, combined with our 20 years of experience in the production of asphalt mixing equipment.

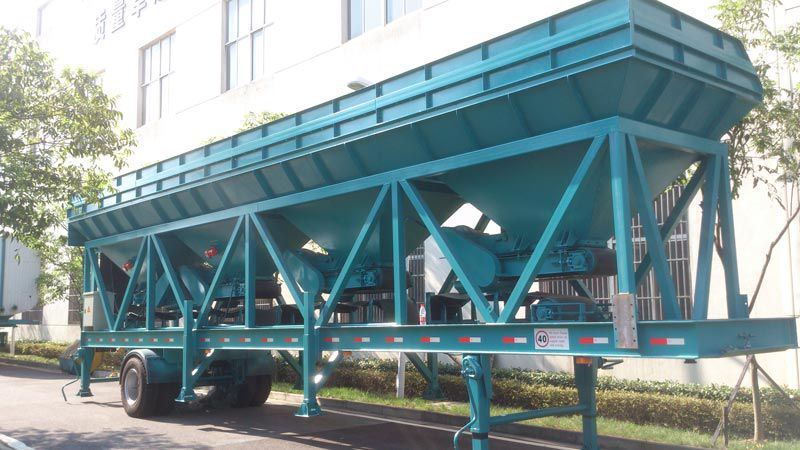

The equipment is integrated on 7 car chassis, to combined into 7 module structures, which is quick to install and convenient to transfer, and also has all advantages of fixed asphalt station. The cable is powered by an aviation plug and each moving part can be quickly connected to the operating room. This equipment can be put into production within 5-7 days after entering the site, and can be completely evacuated from the site within 2 days for easy transition.

QLB-Y Series Mobile Type Asphalt Mixing Plant Data Form

QLB-Y Series Mobile Type Asphalt Mixing Plant Data Form

QLB-Y Series Mobile Type Asphalt Mixing Plant Data Form

QLB-Y Series Mobile Type Asphalt Mixing Plant Data Form

1. Efficient and reliable drying drum

• The optimized material curtain design has a good heat exchange flame zone, equipped with Italian low-pressure atomizing burner, which makes the drying cylinder make full use of heat energy and improve thermal efficiency by more than 8%.

• Four reducer drive smoothly dry drum, which is  more suitable for long-term stable operation.

QLB-Y Series Mobile Type Asphalt Mixing Plant Data Form

2. Precisely manufactured screening system

• The double-vibration motor-driven exciter is external, which is beneficial to the need to further increase the aggregate temperature due to the treatment of the recycled bitumen. The vibrating screen has a large access door at both ends for easy maintenance and replacement of the screen.

• Unique oblique damping spring structure makes the vibrating screen more stable during operation and excellent vibration isolation.

QLB-Y Series Mobile Type Asphalt Mixing Plant Data Form

3.Hot aggregate bin

• equipped with international famous brand material level indicator, making material level easier to control and higher measurement accuracy.

• the outlet adopts accurate weighing structure to ensure the time, stability and accuracy of aggregate cumulative weighing.

QLB-Y Series Mobile Type Asphalt Mixing Plant Data Form

4. Precise filler supply system

• Use screw conveyor to make powder conveying more efficient and stable. WAM company's butterfly valve is installed at the inlet and outlet of the filler weighing bucket to improve the weighing accuracy of filler and ensure no leakage.

QLB-Y Series Mobile Type Asphalt Mixing Plant Data Form

5. Excellent mixing performance

• Rotary-worm double-shaft forced-type mixing tank with strong mixing ability, uniform and rapid mixing, and high production efficiency.

• Use well-designed and proven international-standard mixing tank liners and mixing blades to achieve a working life of more than 100,000 batches.

• The fully open discharge door quickly discharges the finished asphalt mixiture, effectively reducing the mixing cycle.

QLB-Y Series Mobile Type Asphalt Mixing Plant Data Form

6. Efficient dust collecting system

• Adopting gravity dust collecting method, the efficiency of separating dust with particle size <0.075mm reaches 85%, which eliminates the case of excessive using of bitumen or even or even white mixed material caused by dust mixing with aggregate and entering the mixing tank, on basis of full consideration the fact that the normally user's aggregate has a high dust content

QLB-Y Series Mobile Type Asphalt Mixing Plant Data Form

QLB-Y Series Mobile Type Asphalt Mixing Plant Data Form

7. Stable and reliable control system

• The use of Mitsubishi PLC's central control unit, the internationally renowned brand of electrical components, zero fault system concept can be achieved.

• Two high quality industrial computers with high configuration as human-machine interface adopt the same software system and functions to realize system data management, historical record, operation parameter adjustment and other operational functions.

• The control interface is completely used in the way you see it, no button operation, quick start, convenient and reliable control. All the running records and recipe data you need can be stored in the computer or printed out.

QLB-Y Series Mobile Type Asphalt Mixing Plant Data Form

QLB-Y Series Mobile Type Asphalt Mixing Plant Data Form

8. Precise and stable weighing module

• The weighing system adopts the pull sensor structure, international famous brand sensor, with excellent weighing precision.

• Unique weighing automatic compensation function makes weighing accuracy completely meet or exceed the standard foreign asphalt mixing equipment.

QLB-Y Series Mobile Type Asphalt Mixing Plant Data Form

9. Excellent overall design

• Customized environmental protection concepts according to European standards, providing users with environmentally-friendly equipment that meets the standards of dust, acid emissions and noise.

• The dust collector system adopts high-quality DuPont bag(Nomex material) and the negative pressure dust-proof design of the mixing tower could be used safely in the city or in the scenic area.

QLB-Y Series Mobile Type Asphalt Mixing Plant Data Form

10. Excellent economic performance

• The lowest operating cost: drying drum, vibrating screen, hot aggregate silo are highly and properly insulated to make the equipment has a great performance in fuel and electricity consumption, which quietly save your production costs during operation.
